OBS Setup
It’s simple guide for two tasks:
How to stream from OBS to JustMiniServer
How to play stream from JustMiniServer by OBS

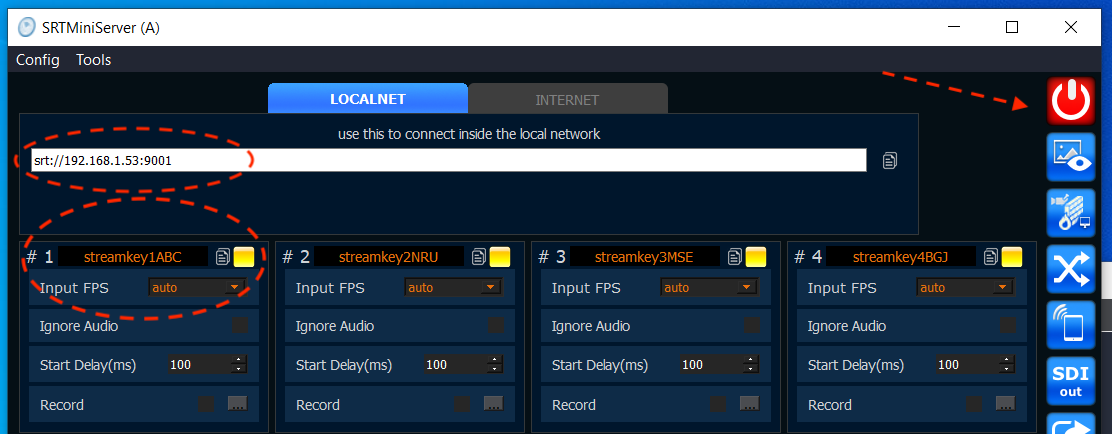

Start JustMiniServer
Streaming from OBS

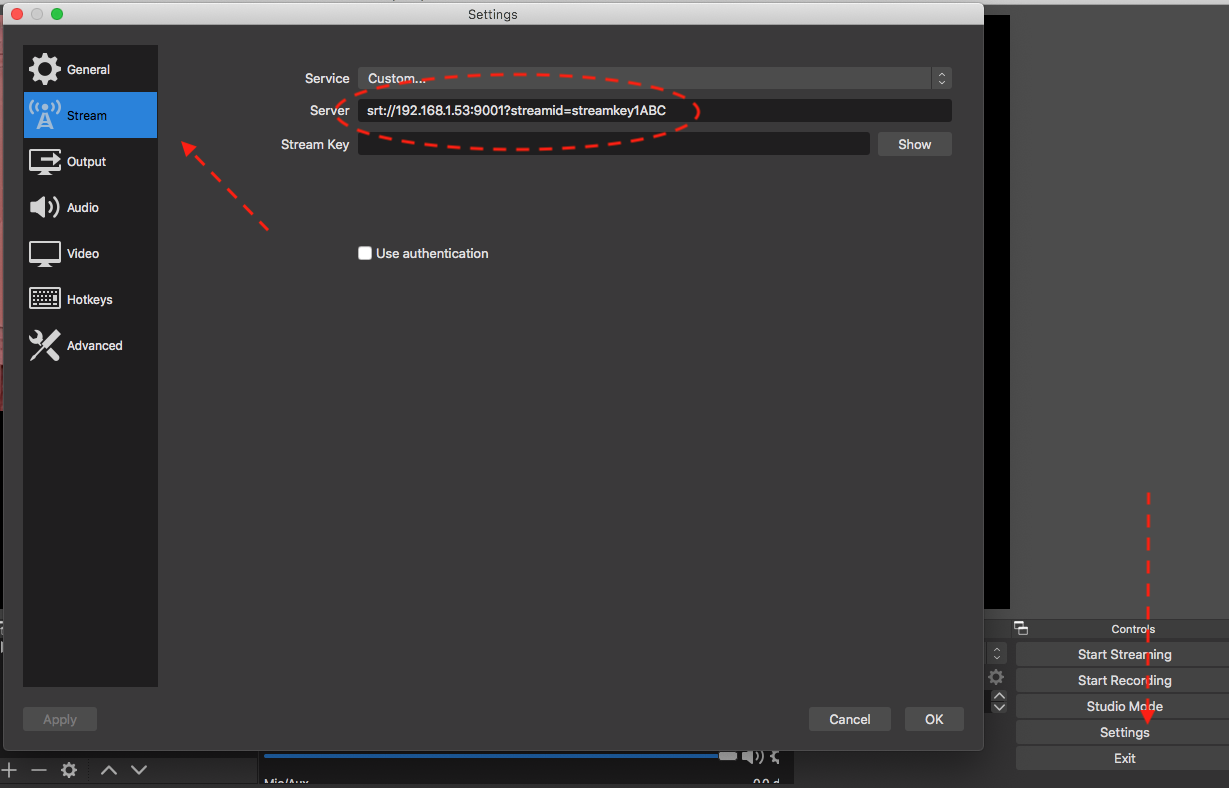

for OBS you need move to Settings –>Stream and type field Server as on image:
Setup SRT
We typed streamid field inside URL srt://192.168.1.53:9001?streamid=streamkey1ABC
Also you can add other SRT-params to URL by ‘&’, for example latency (ms)
srt://192.168.1.53:9001?streamid=streamkey1ABC&latency=300

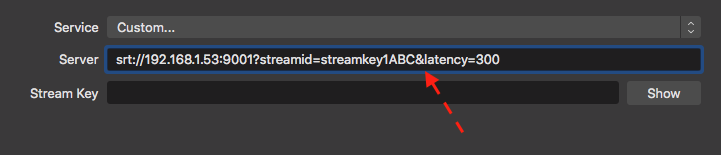

Setup SRT with few parameters
Please be aware wrong setup:

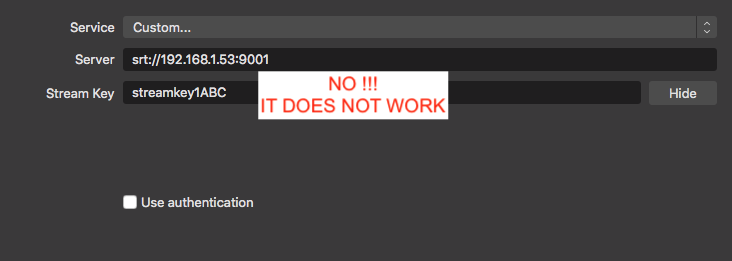

WRONG setup

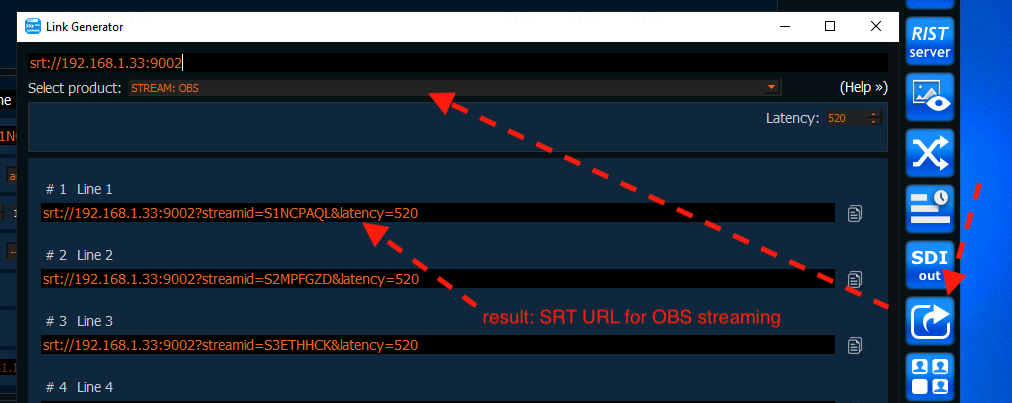

(Optional) Link Generator: You can use LinkGenerator for quick generate SRT URL for OBS:
Result:
press Start Streaming in OBS.

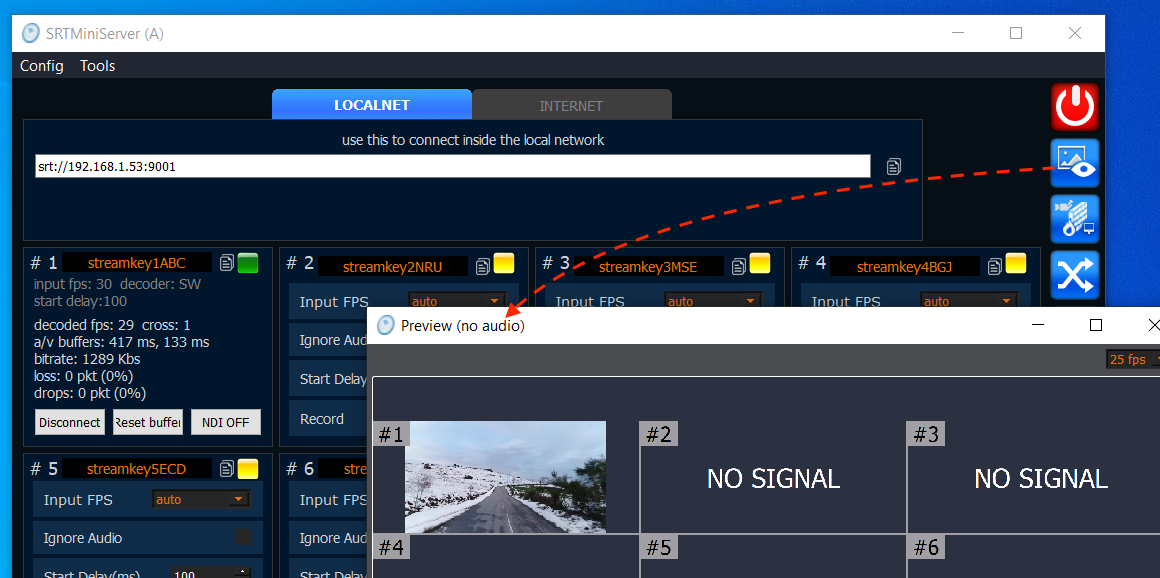

JustMiniServer will accepts connection and you can see Preview.
What’s next? Please open your mixer software and use NDI from JustMiniServer for next production stages.
Setup OBS for play SRT from JustMiniServer
It’s easy: you need add “Media Source” and do setup:

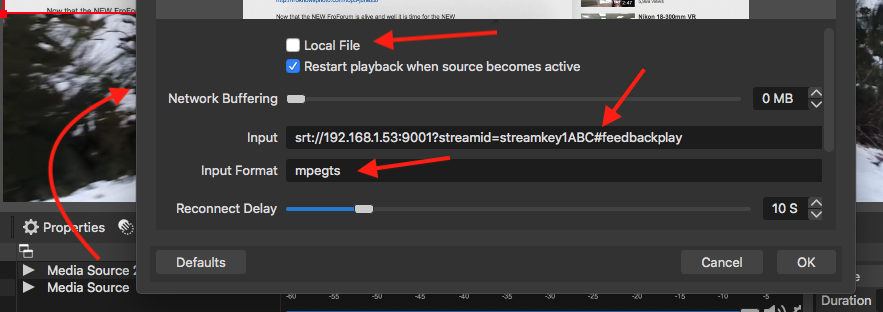

Configuration for play SRT
Please note: we added special #feedbackplay suffix to stream id
BTW: you can use #talkback suffix as well as #feedbackplay
Connection through Internet
In this post we described connection inside local network. Connection through Internet very similar but you need additional setup on JustMiniServer side:
If you have dedicated IP then you can use direct-connection
If you have not dedicated IP then just use ProxyAddon

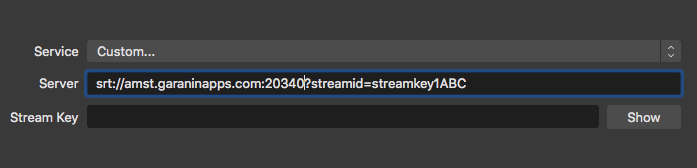

for OBS setup still same.For example if you use ProxyAddon:
